D-Sub DB-15 Male Output Connector Pinout:

        Pin 1 - Channel 1 + Signal - Solid Orange Wire

        Pin 2 - Channel 1 - Signal - Orange/White Wire - Note 1

        Pin 3 - Channel 2 + Signal - Solid Green Wire

        Pin 4 - Channel 2 - Signal - Green/White Wire

        Pin 5 - Channel 3 + Signal - Solid Blue Wire

        Pin 6 - Channel 3 - Signal - Blue/White Wire

        --------------------------------------

        Pin 11 - Ground - Note 2 and 3

Note 1: On single-ended 16-Bit digitizers all - Signals are connected to ground

Note 2: The outer shield of the 4 pair cable is connected to this pin

Note 3: The brown twisted pair inside the cable are not used

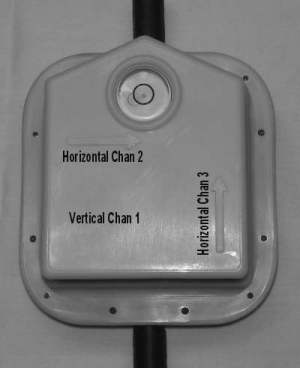

Sensor Orientation to Channel Number
